| Item | Specification |

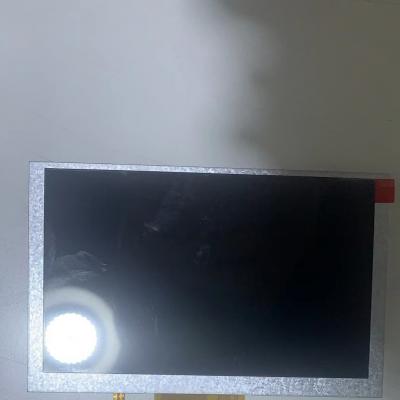

| type | PC050TN44 |
| LCD type | 5.0” TN a-Si TFT active matrix |
| Dot format | 800 x (RGB)(W) x 480(H) |
| Display mode | Normally white, Trans-missive |
| Viewing direction | All (with Omni-wide film)65/80/80/80 |
| Contrast ratio | 500 (Typ.) |
| Luminance | 450 (Typ.) Cd/m2 |
| Outline dimension | 120.70(W) x 75.80(H) x 2.80(Max.)mm |
| Active area | 108.00(W) x 64.80(H)mm |
| Pixel pitch | 0.135 x 0.135mm |
| Pixel arrangement | RGB stripe type |
| Display colors | 16.7M colors |
| Surface treatment | Anti-glare |
| LCD Driver IC | ILI6122(Source), ILI5960(Gate) |
| Interface type | 24-bit parallel RGB |
| Backlight | 12pcs White LED (6 serial & 2 parallel) |
| Weight | 56.4g |
| Operating temperature | - 20~70°C |
| Storage temperature | - 30~80°C |
